Special-purpose manway
E139BL (240x460)

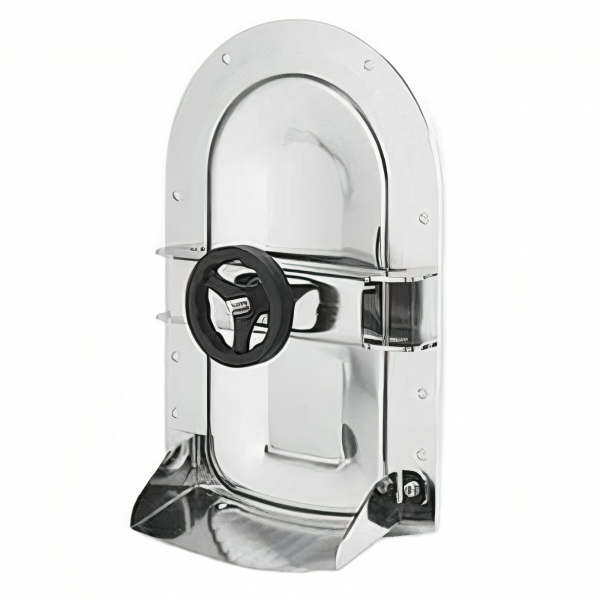

Stainless steel oval manway for wooden tanks (barrels) E139BL
The E139BL oval manway is installed in the side wall of a wooden tank (barrel). The cover of the manway opens outward. The closure is carried out with a single, centrally located handwheel.
A characteristic feature of the manway is its flange with holes that allow the manway to be attached to the surface of the barrel.
The main area where the E139BL oval manway is used is wooden tanks for wine production.
The use of oval manway E139BL
This model is structurally adapted for installation in wood. Therefore, most often the E139BL oval manway is installed in large barrels intended for aging wine, whiskey or brandy.
It is also used with good effect in barrels intended for aging beer and storing other products of the industry:
- wine,
- spirits,
- food.
Through the appropriate selection of gasket materials, the E139BL oval barrel manway can be adapted to many different products/media.

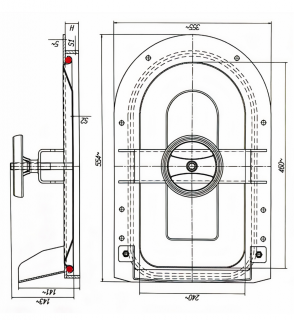

| Model | H [mm] | S1 [mm] | S2 [mm] | MAX [bar] |
|---|---|---|---|---|
| E139BL | 64 | 6 | 2 | 1.5 |
Technical parameters
| Product series | Series E |
|---|---|
| Shape | Oval manways |
| Type | Pressure manway |
| Frame height (in mm) | 64 mm |
| Frame wall thickness (in mm) | 6.0 mm |
| Opening type | Outward |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 0.5 - 2.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, NBR, Silicone, Viton |
| Handwheel material | Plastic, INOX |
