Special-purpose manway
E130CEM (424x316)

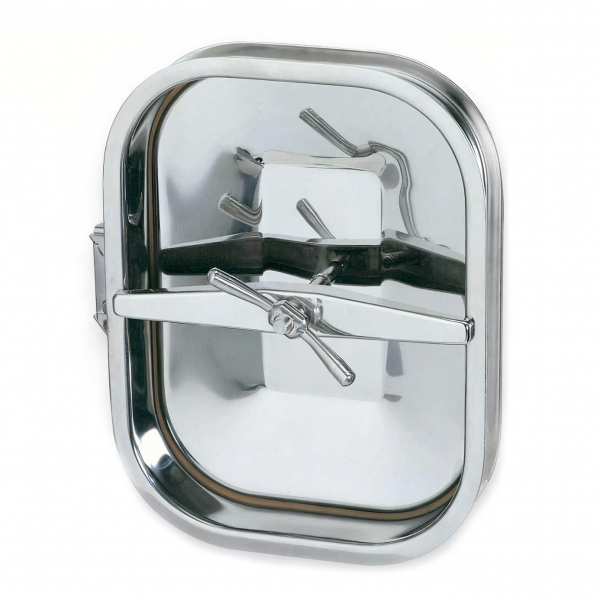

Stainless steel rectangular manway for concrete tanks E130CEM
Rectangular vertical manway E130CEM is suitable for installation in the side wall of a cement tank. The cover of the E130CEM manway is equipped with an internal hinge, making it easy and safe to open. A distinctive feature of the E130CEM is an inward opening cover with a single, centrally located handwheel.
The primary area of use for the E130CEM rectangular manway is cement fermentation tanks used in wine production. In addition, features of the manway allow it to be used in applications outside the food industry.
The use of stainless steel rectangular manway E130CEM
The main areas of application are:
- food industry,
- beverage and alcohol production,
- chemical and biotechnology industries,
- industrial equipment and chambers.
With good results, the manway is successfully installed wherever the parameters of the materials used for its construction allow its application.
| Model | H [mm] | S1 [mm] | S2 [mm] | MAX [bar] |
|---|---|---|---|---|
| E130CEM | 64 | 3 | 2 | 1.0 |
Technical parameters
| Shape | Rectangular manways |
|---|---|
| Type | Pressure manway |
| Frame height (in mm) | 64 mm |
| Frame wall thickness (in mm) | 3.0 mm |
| Opening type | Inward |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 0.5 - 2.5 bar |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, NBR, Silicone, Viton |
| Handwheel material | INOX |
