Special-purpose manway
E127CEM (438x306)

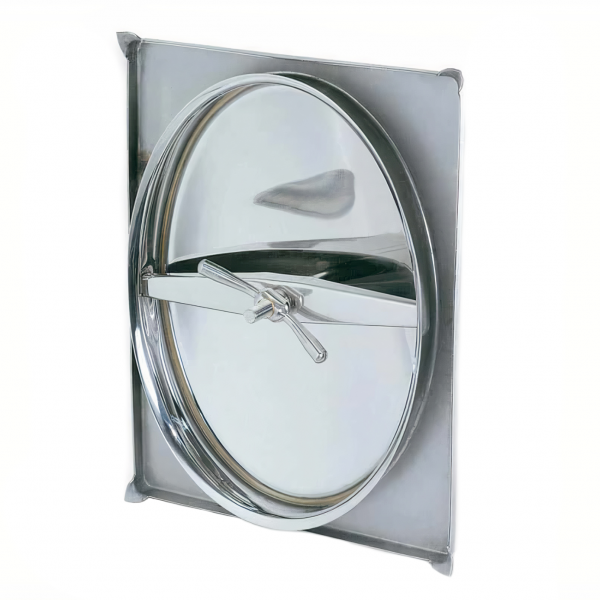

Stainless steel oval manway for concrete tanks E127CEM
Oval manway E127CEM is designed to be installed in the side wall of a concrete/cement tank. Its cover opens inward, and is equipped with a centrally located handwheel for opening and closing the manway.
A distinctive feature of the manway is a rectangular frame designed to be seated in the cement ground.
The main area where the E127CEM rectangular manway is used is cement fermentation tanks for wine production. In addition, features of the manway allow it to be used in applications outside the food industry.
The use of stainless steel oval manway E127CEM
The main areas of application are:
- food industry,
- beverage and alcohol production,
- chemical and biotechnology industries,
- industrial equipment and chambers.
With good results, the manway is successfully installed wherever the parameters of the materials used for its construction allow its application.

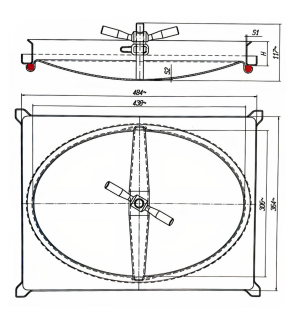

| Model | H [mm] | S1 [mm] | S2 [mm] | MAX [bar] |
|---|---|---|---|---|
| E127CEM | 50 | 2 | 2 | 3.0 |
Technical parameters
| Product series | Series E |
|---|---|
| Shape | Oval manways |
| Type | Pressure manway |
| Frame height (in mm) | 50 mm |
| Frame wall thickness (in mm) | 3.0 mm |
| Opening type | Inward |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 2.51 - 4.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, NBR, Silicone, Viton |
| Handwheel material | INOX |
