Special-purpose manway
E121CEM (424x316)

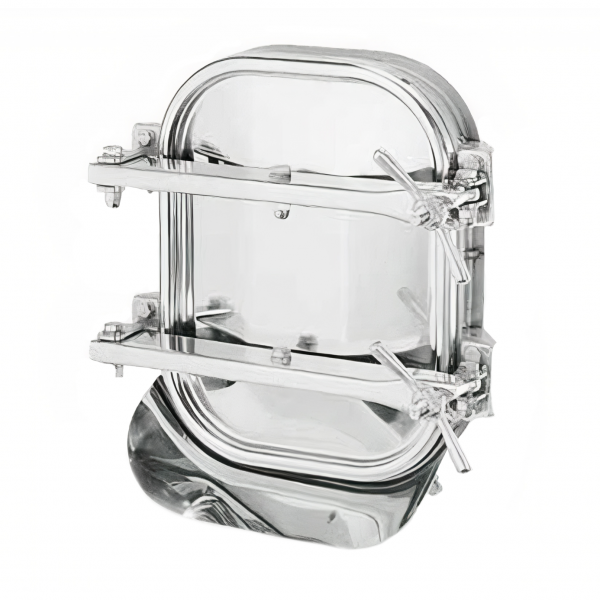

Stainless steel rectangular manway for concrete tanks E121CEM
Rectangular manway E121CEM, is a vertical construction, suitable for installation in the side wall of a concrete tank. The cover of the E121CEM manway is equipped with two hinges, making it easy and safe to open. The hinges are also designed to stabilize the opened cover, which, as a result, facilitates maintenance work.
The primary area in which the E121CEM rectangular manway is used is cement fermentation tanks used in wine production. In addition, features of the manway allow it to be used in applications outside the food industry.
The use of stainless steel rectangular manway E121CEM
The main areas of application are:
- food industry,
- beverage and alcohol production,
- chemical and biotechnology industries,
- industrial equipment and chambers.
With good results, the manway is successfully installed wherever the parameters of the materials used for its construction allow its application.

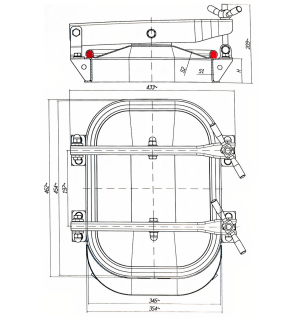

| Model | H [mm] | S1 [mm] | S2 [mm] | MAX [bar] |
|---|---|---|---|---|
| E121CEM | 64 | 3 | 2 | 1.0 |
Technical parameters
| Product series | Series E |
|---|---|
| Shape | Rectangular manways |
| Type | Pressure manway |
| Frame height (in mm) | 64 mm |
| Frame wall thickness (in mm) | 3.0 mm |
| Opening type | Outward |
| Mounting method | in the tank side wall (side manways) |
| Pressure | 0.5 - 2.5 bar |
| Vacuum pressure | not applicable |
| PED certificate | no |
| Steel grade | AISI 304/304L, AISI 316/316L |
| Gasket material | EPDM, NBR, Silicone, Viton |
| Handwheel material | INOX |
